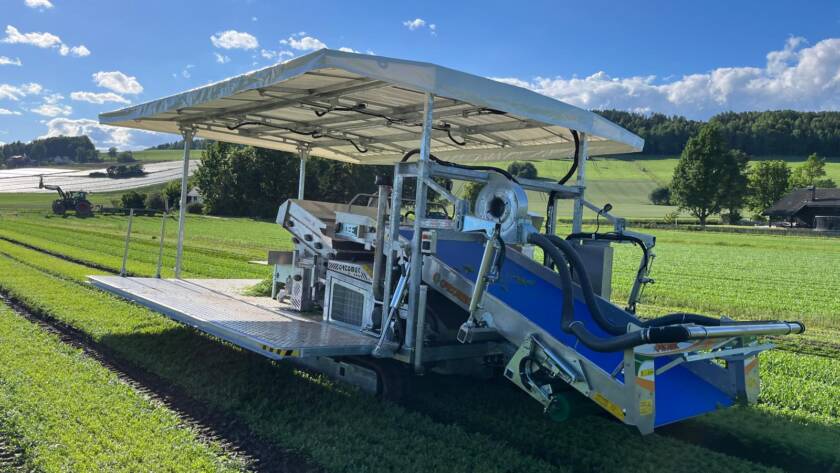

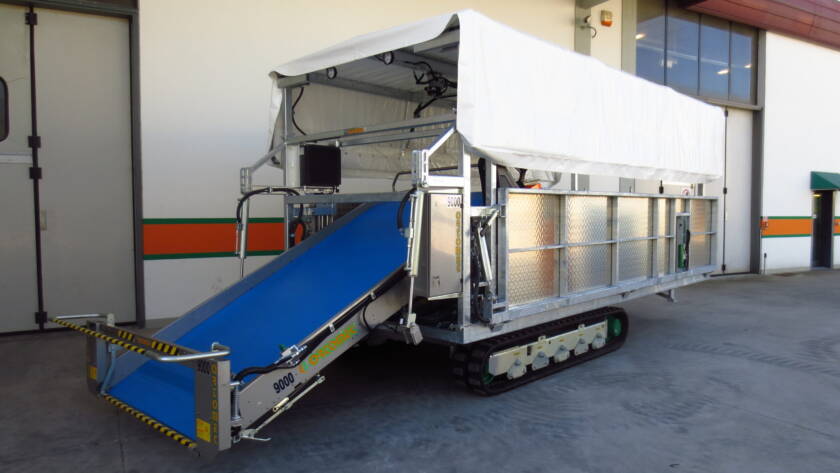

Self-propelled on tracks

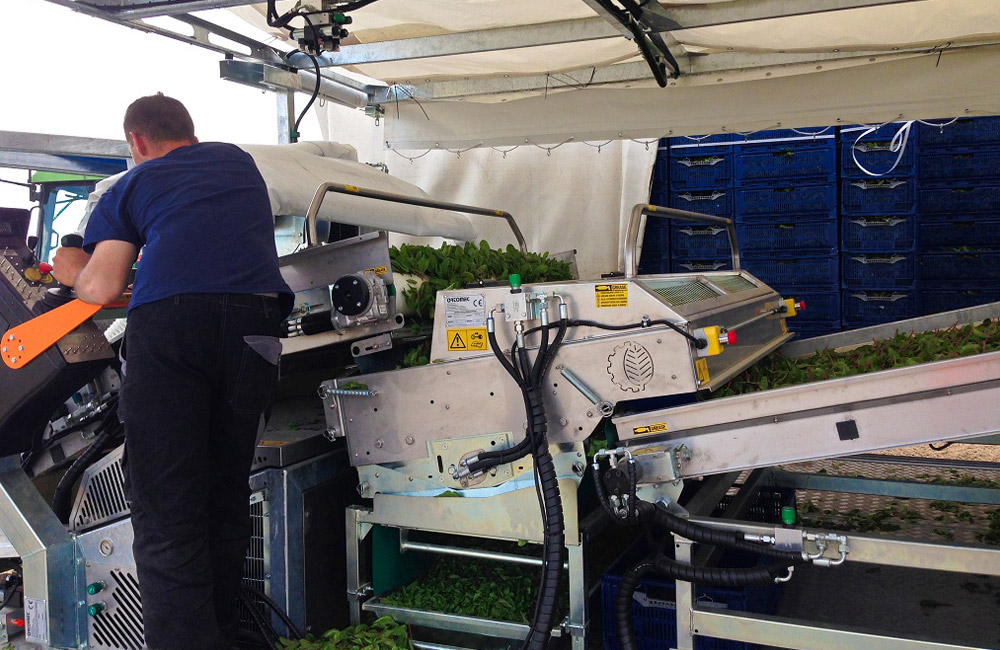

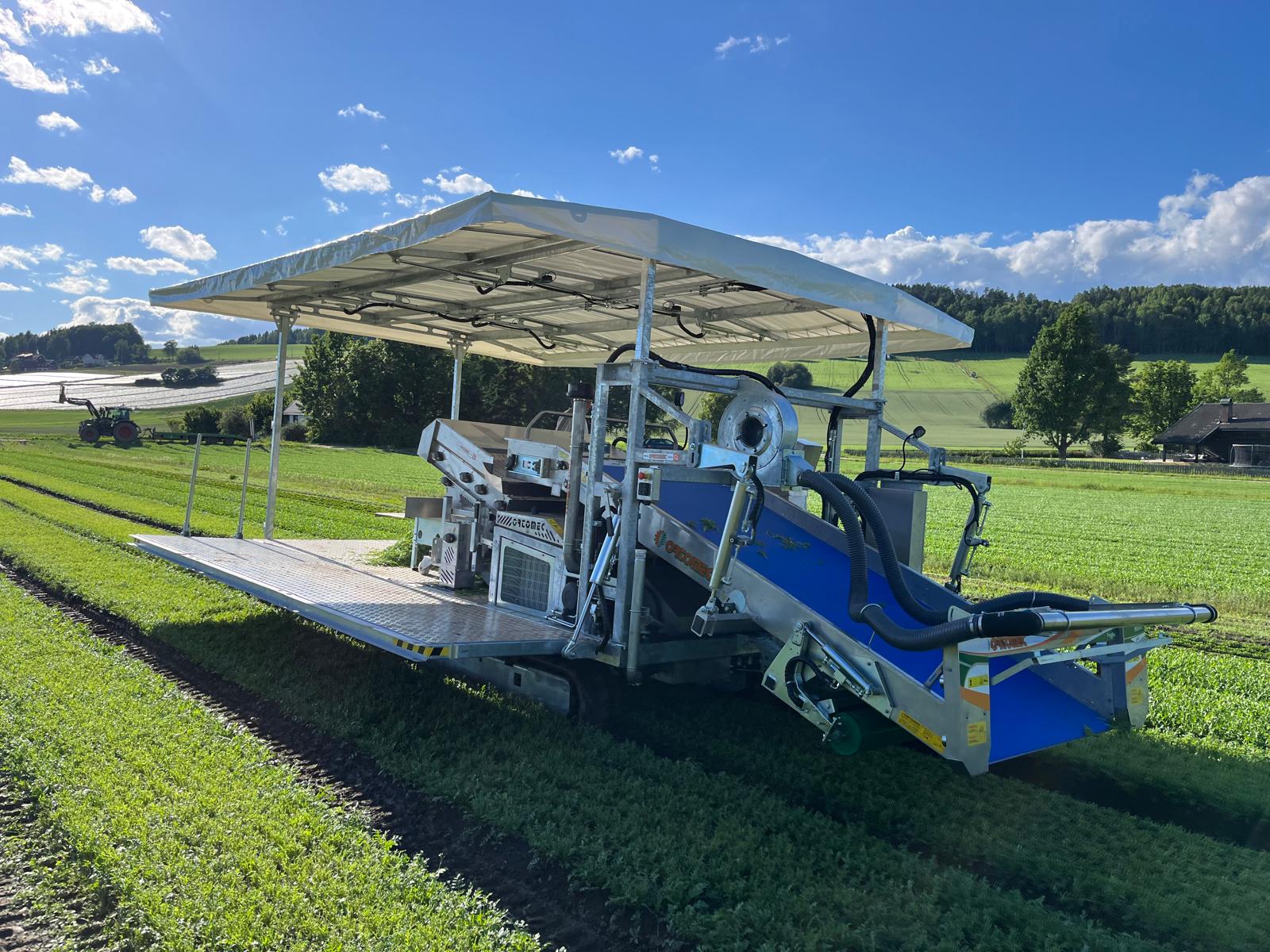

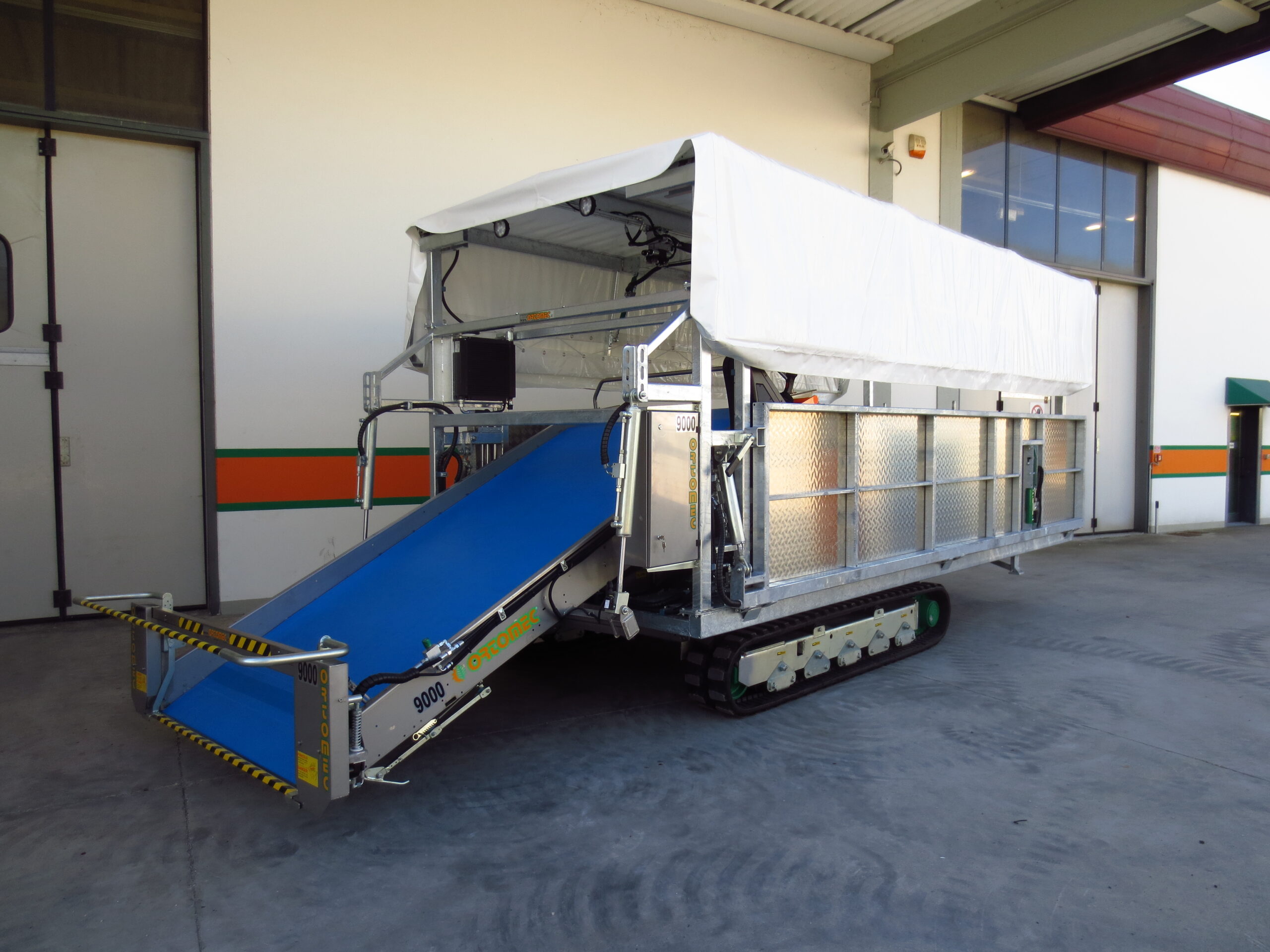

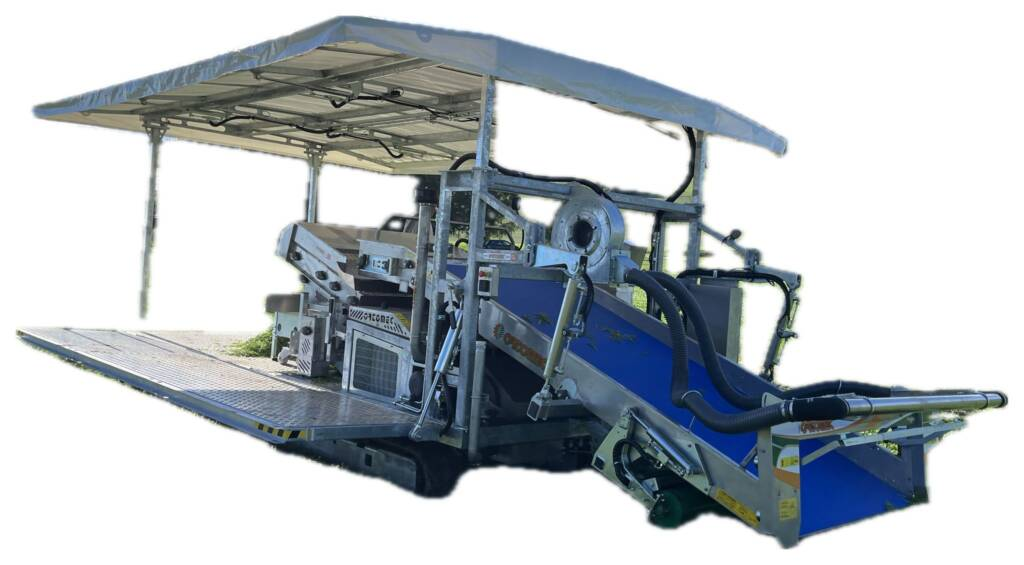

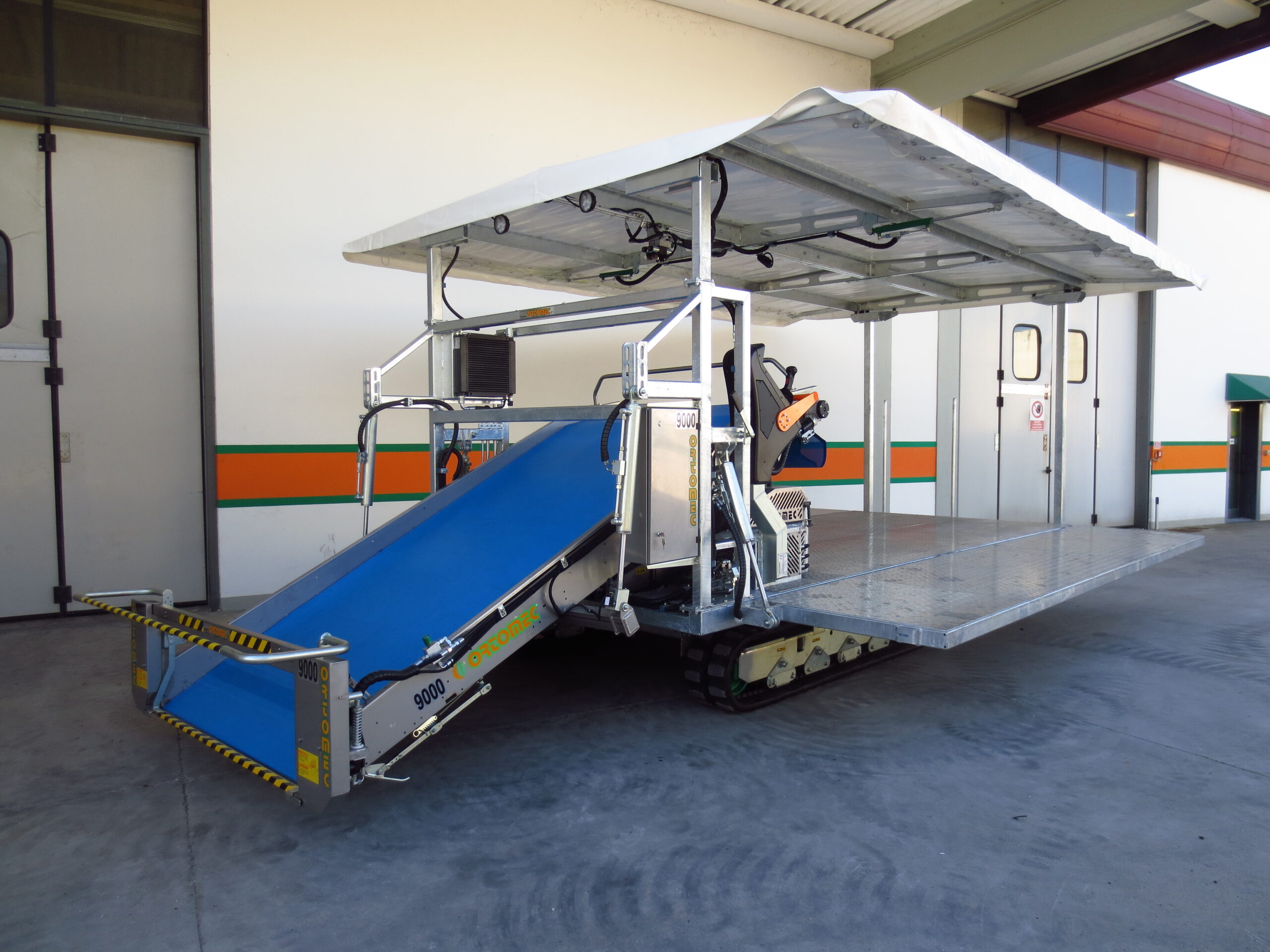

Machine in “FOGLIA” version, for the harvest of leafy vegetables (rocket, spinach, baby leaf, etc.)
- Stainless steel cutting system:
– A Type with 21 cm working height – 2 pulleys
– B Type with 31 cm working height – 2 pulleys
– F Type with 45 cm working height – 4 pulleys - Band-blade cutting system;
- Conveyor belt frame in stainless steel;
- Cutting height control from driver’s seat by means of single roller with free / hydraulic rotation with speed adjustment;
- Cutting blade speed adjustment by means of hydraulic valve;

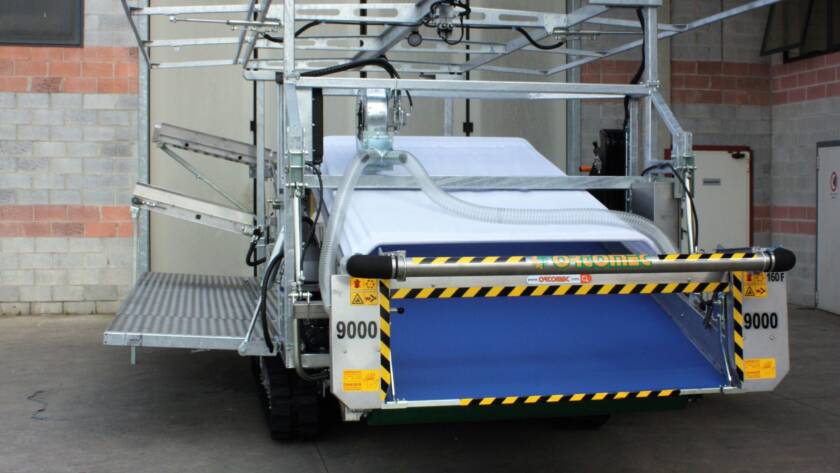

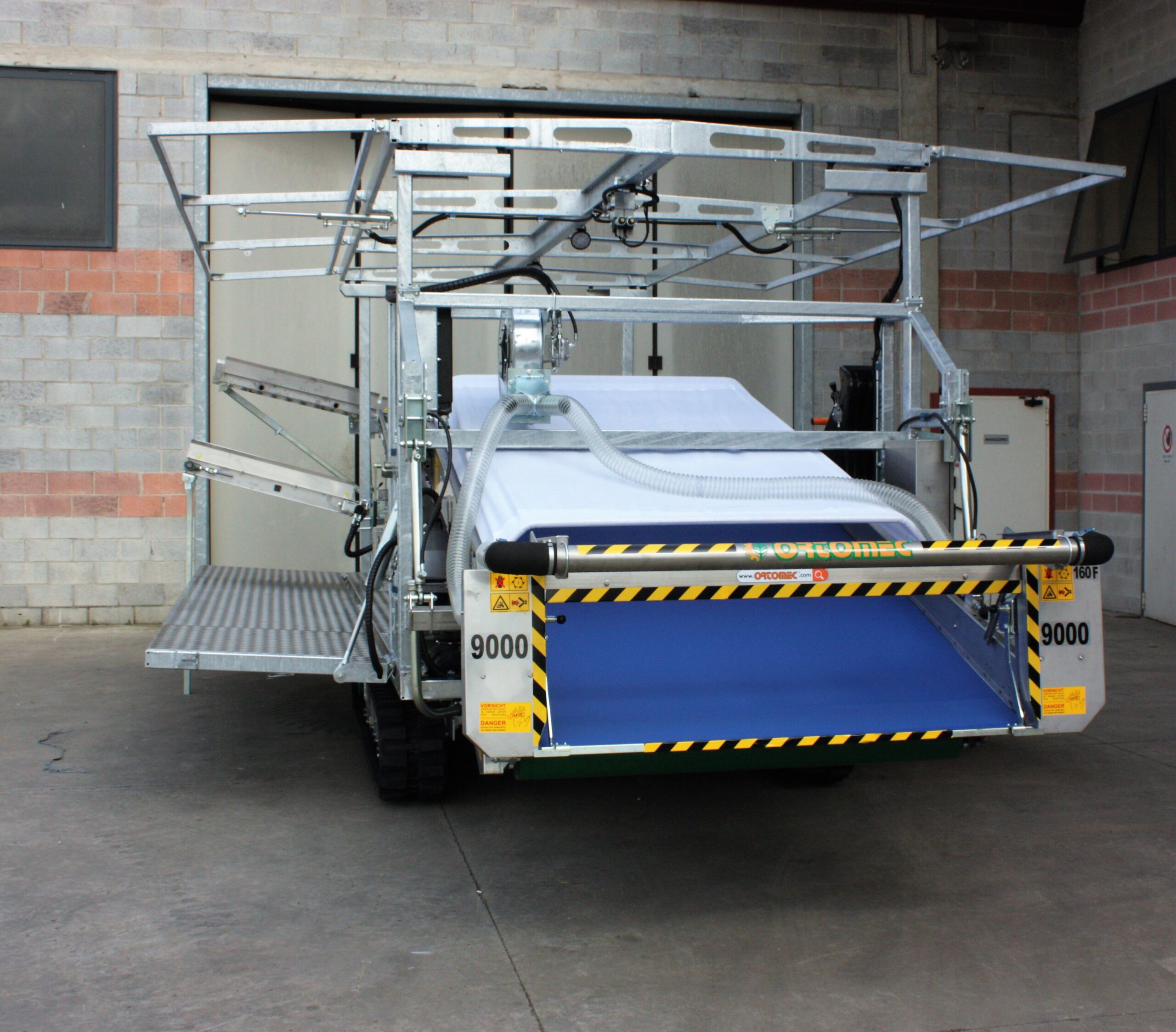

- Hydraulic conveyor belt;
- Conveyor belt speed adjustment control from driver’s seat by means of manual control valve;
- Belt cleaning system with collection of residuals;
- Conveyor belt food-grade certified.
Main features

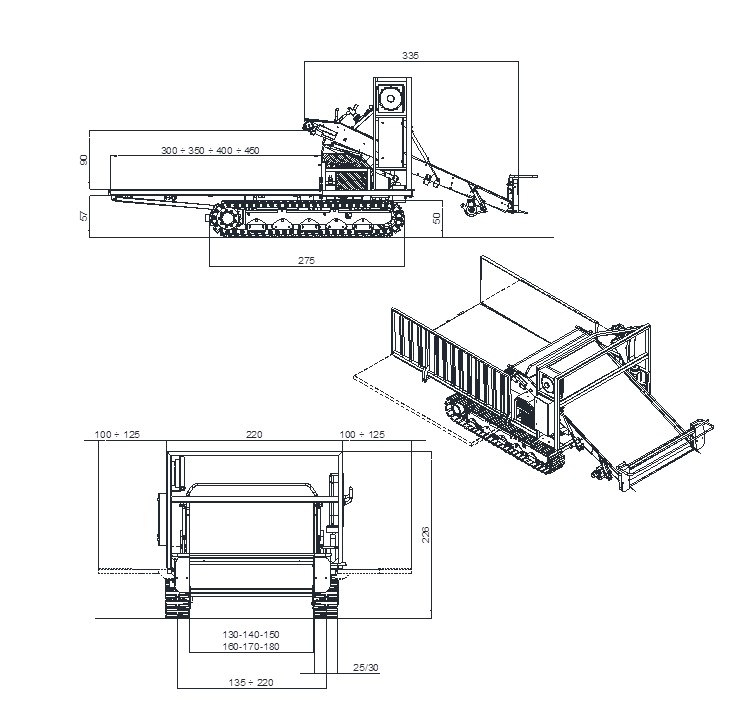

- Tracked wagon on fixed rollers (or movable as optional): steel tracks, width: 20, 25 or 30 cm, length 270 cm; rubber tracks, width 30 cm, length 270 cm;
- Fixed gauge from 145 cm to 210 cm;
- 74 HP Diesel engine;
- Steering and forward movement by means of joystick;

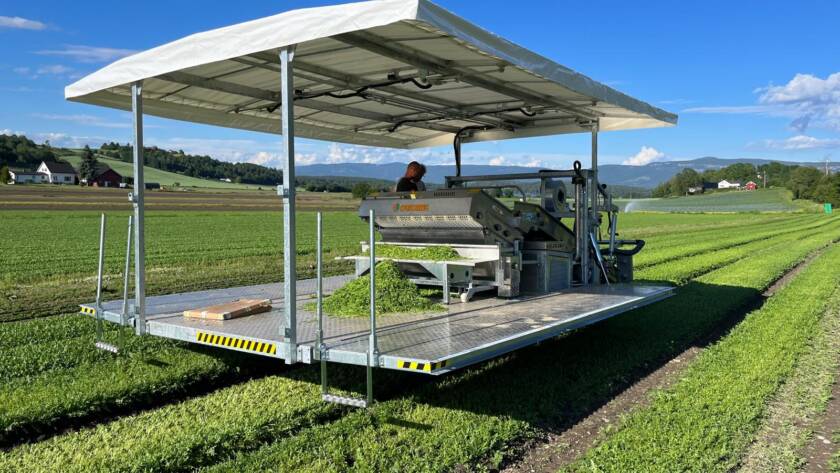

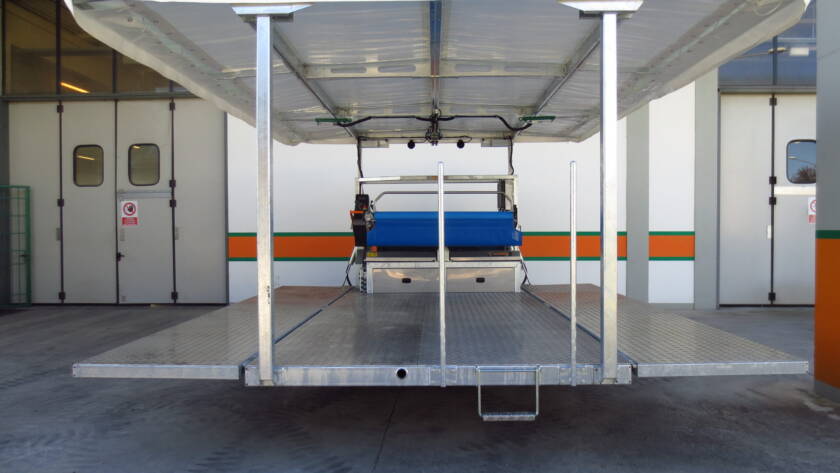

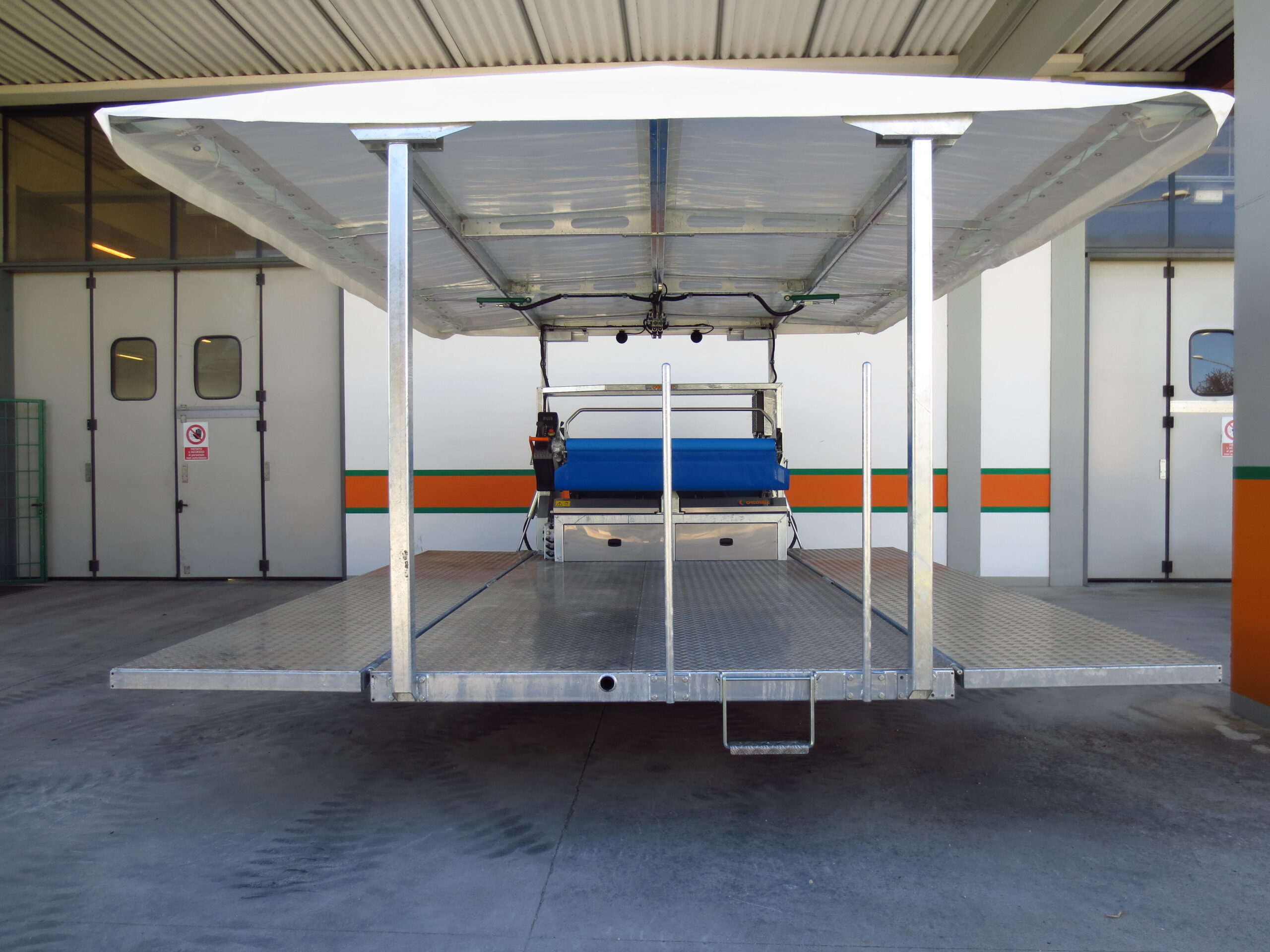

- Working/loading deck dimensions: 300-350-400-450 x 420-470 cm (with side platforms opened);

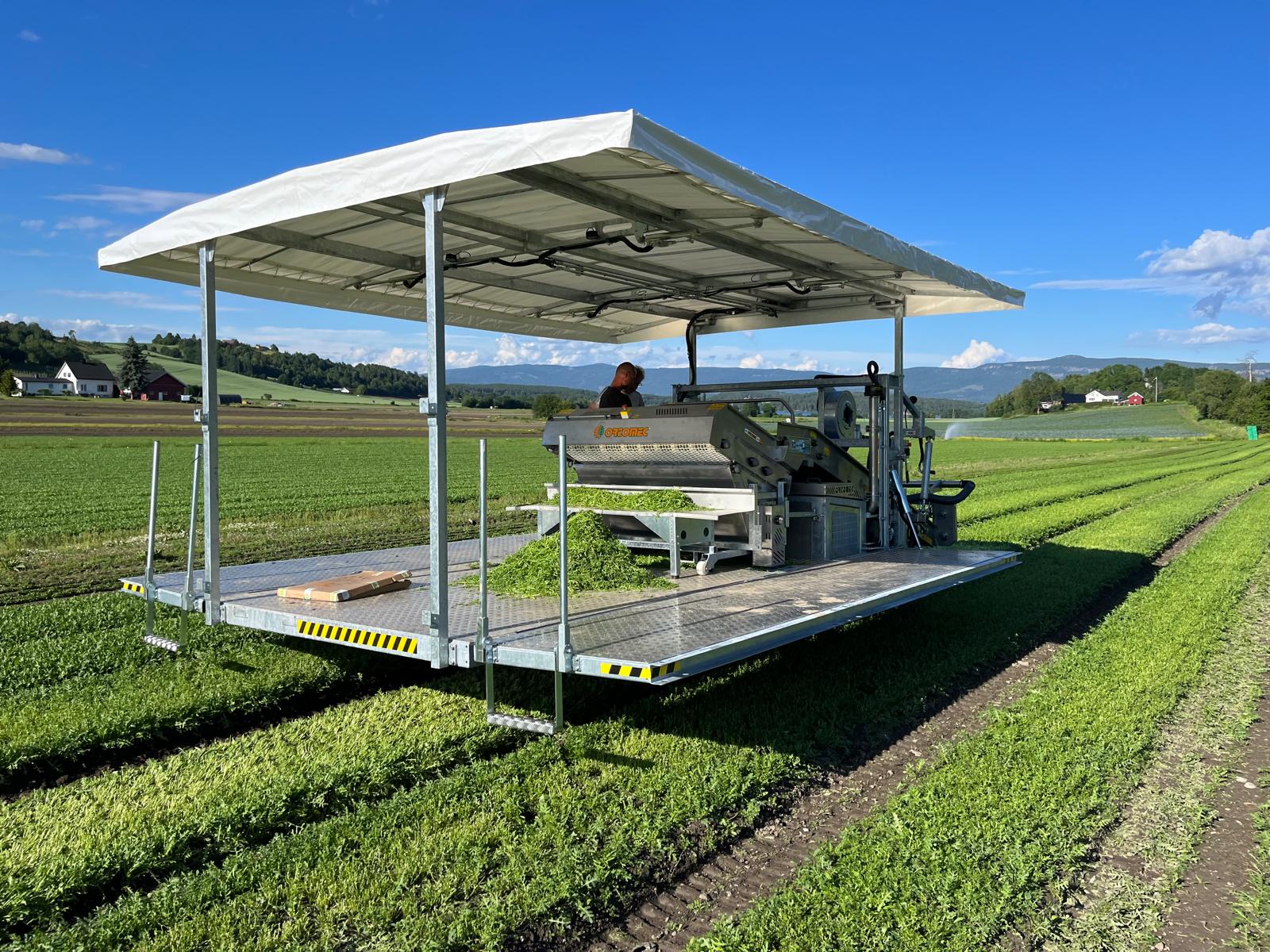

- Side platforms width: 100 or 125 cm each one;
- Side platforms with hydraulic opening/closing;
- Speed: from 0 to 6 km/h with gradual variation;
- Hot galvanised machine frame;

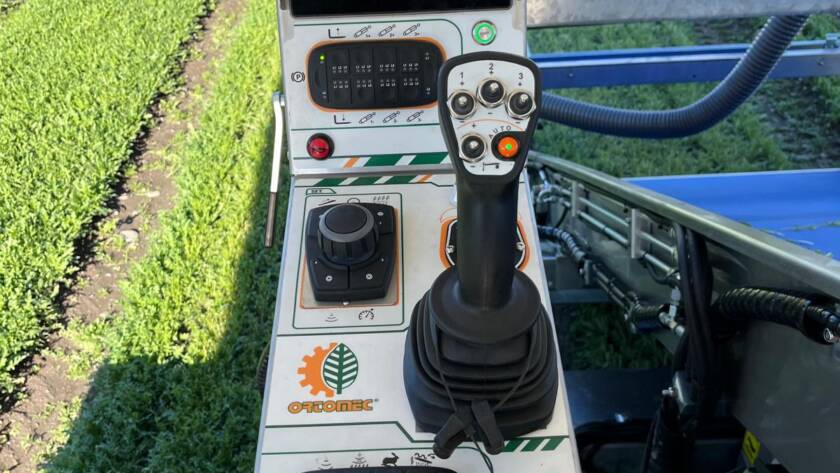

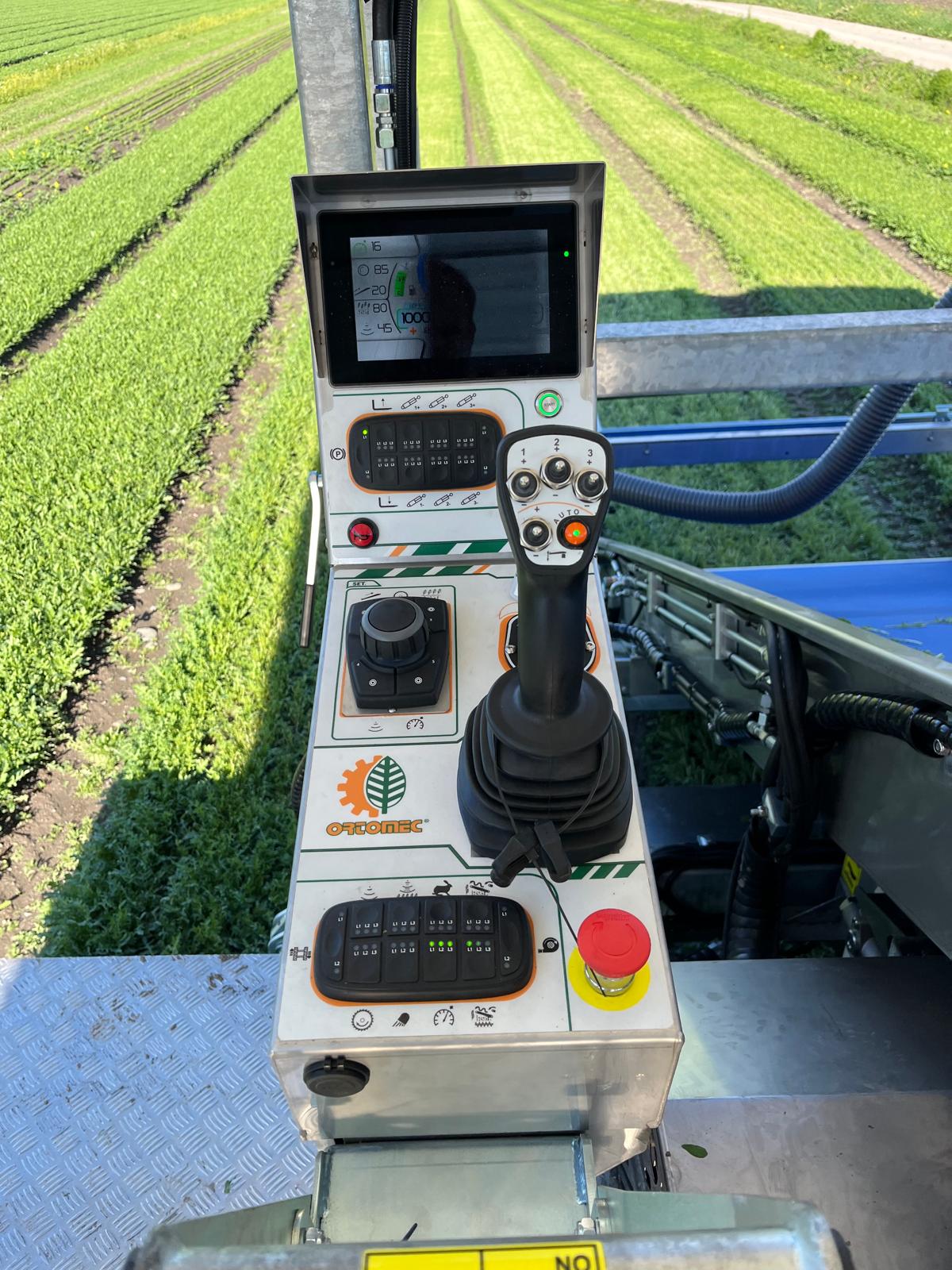

- Multifunction joystick;
- Touch screen display;
- Stainless steel crankcase and hydraulic oil reservoir;
- Temporary working stop system with restart of same speed;
- N.1 hydraulic connection for auxiliary service;
- Ground clearance: 32 cm;
- Total weight of machine: approx. 4.000 kg;
- LED light system complete with nr. 3 lights.
