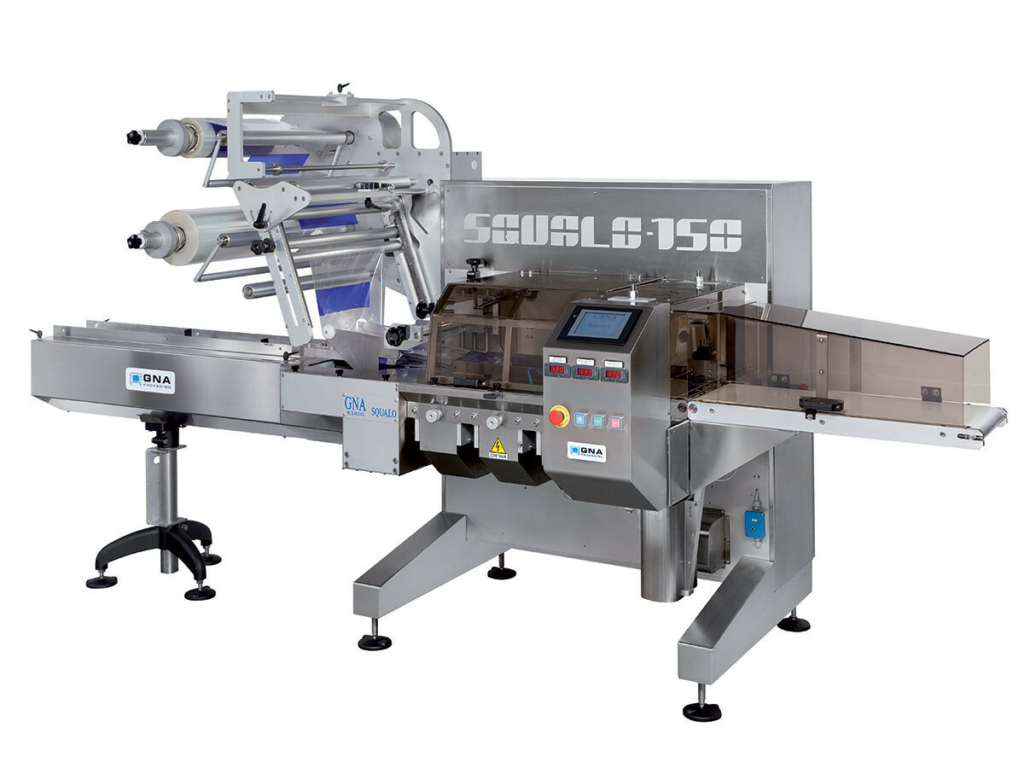

The horizontal electronic SQUALO packaging machine is one of the most powerful flow pack machines of GNA srl range.
It is made of AISI 304 stainless steel and aluminium and has rounded corners to prevent product build-ups and allow easier machine cleaning. It is fit for being used in many sectors such as fruit & vegetable, bread-making, dairy, confectionery, sausage meats, pasta, etc.
Thanks to its high versatility, flexibility and reliability, it can pack any type of solid product, whether food or not and reaches a max speed of 150 cycles/min.
Squalo is extremely modular and may be customized by means of a two-volume structure that permits to separate the mechanical-electrical area from the work control area by installing overhanging units.
Two brushless motors and the Touch Screen panel guide the operator throughout the main operations that entail preparing and storing data, to operate the machine.
Main technical data
- Speed (cycles per minute): min 70 – max 150
- Film width: max 800 mm
- Bag length: min 50 - max 500 mm
- Product width: min 70 - max 300 mm
- Clearance between jaws: from 160 to 210 mm
- Electrical consumption: 3 KW
- Compressed air consumption: 15 NL/min
Areas of application
- Fruit&Vegetables
- Bakery products
- Salty snacks
- Diary products
- Miscellaneous No-Food
- Miscellaneous - Food
- Fresh cut
- Sweets
- Pasta/Rice
