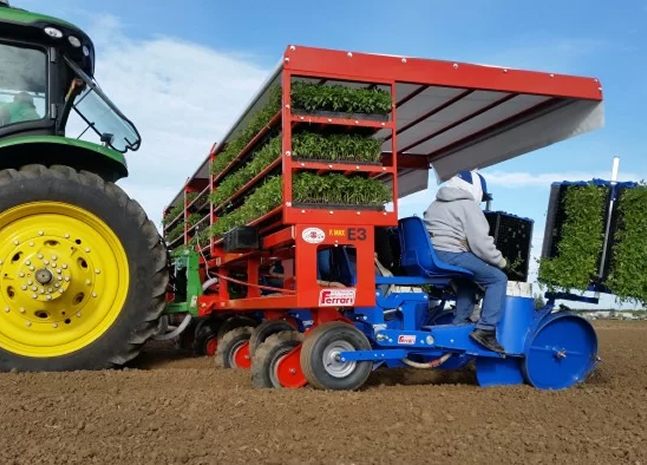

This carousel machine can be fed with plugs of different shapes (pyramid, cylinder, cone and, in some cases, square blocks). The transplanter carousel is turning in clockmotion (STOP&GO).
Main features
- Tractor power required: from 40 to 150 HP
- Wheel track width: from 120 to 225 cm
- Row width: from 50 to 200 cm
7000 plants / hour per row
Maximum productivity per operator
Transplanting machine for plants in modules (diameter from 2 cm[0.8″] to 5.5 cm [2.16″])

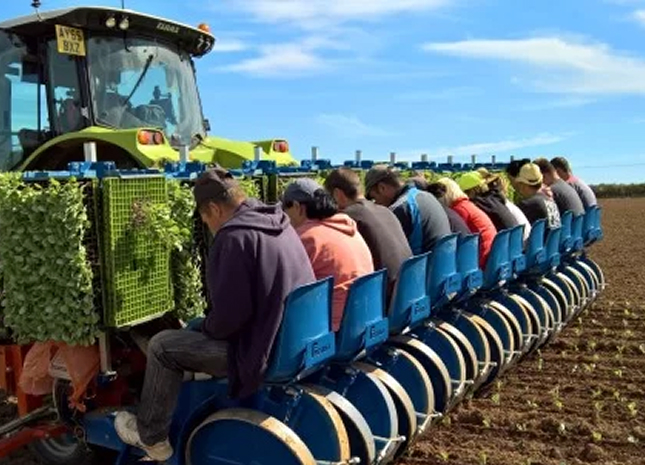

1 operator
for row
- Perfect for vegetables such as tomatoes, brassicas, celery, peppers all other vegetables having leaves similar to ones above listed with min height 10 cm [4"] and max height 30 cm [12"]
- Versions: 3 point hitch, draw-bar
- Frame: rigid, folding, telescopic
- min row spacing: 46 cm [18"] (35 cm [14"] with longer element - 25 cm [10"] tandem version)
- PSC (Hydraulic gearbox as an alternative to the mechanical one with display to set plants per hectare / distance on the row)
- Main fittings: parallel linkage, rubber roller, granular applicator, fertilizer applicator, water applicator, water pipe, stretching tool, hydraulic transmission, back pressing wheel hydraulic adjustament
This specific feature is extremely important to guarantee a constant drop of the plants from the top to the ground. The clockmotion allows to increase the performance per hour, the precision of the planting depth and the distance in the row.
